Clout Nails With Overlarge Head, Especially for Roofing Felt

Clout nails, also known as shingle nails or felt nails, are commonly used to fix soft materials such as plasterboard and roofing felt. Featured with short nail shank and a flat larger head, roofing felt nail distribute the load directly underneath the top of the nail. For different cost budgeting and project quality needs, the nail shanks are available in smooth, ring and screw. All of the above mean clout nails will provide a greater holding power during construction, as well as improve engineering quality and operating efficiency. These nails particularly suitable for fastening soft or porous materials, including many joineries, construction and roofing applications.

Steel Nails Catalog

There are several clout nails with flat head.

Feature

Feature
  • Suitable for use with both soft and hard wood.
  • Large flat head is flush with the material.
  • Twist ring shanks offer excellent withdrawal resistance.
  • Various surface coatings for increased durability.
  • Can be collated for pneumatic nail gun operation.
  • Various nail shank types for different requirements.

Specification

Specification
  • Material: carbon steel, stainless steel, aluminum, copper.
  • Length: 1" – 3".
  • Head: flat round.
  • Head diameter: 0.55" – 0.79".
  • Shank type: smooth, ring, screw.
  • Point: diamond or blunt.
  • Surface treatment: polish, electro galvanized, hot dipped galvanized or vinyl coated.
  • Package
    • 25 kg/carton in bulk.
    • 1kg/plastic bag, 20 bags/carton.
    • 5KG/box, 4 boxes/carton, 50 carton/pallet.
Nail background

Styles

Styles
There are four clout nails with smooth shank.

Clout nails – smooth shank

There is a clout nail with ring shank.

Clout nails – twist shank

There are four clout nails with spiral shank.

Clout nails – screw shank

Details

Details
There is a clout nail with large flat head.

Large flat head

There are five clout nails with large flat head and smooth shank.

Full range of sizes & materials

Collated clout nails with ring shank.

Can be collated for pneumatic nail gun

Stocked-Size

Stocked-Size
A diagram picture of clout nails.
Table 1: Specification of Clout Nails
Table 1: Specification of Clout Nails
Item No. Size (d) Length (inch) Rod Diameter (gauge) Head Diameter (mm)
XCRN-01 6 2 8 0.79
XCRN-02 8 2-1/2 8 0.79
XCRN-03 10 3 8 0.79
XCRN-04 4 1-1/2 9 0.79
XCRN-05 6 2 9 0.79
XCRN-06 8 2-1/2 9 0.79
XCRN-07 10 3 9 0.79
XCRN-08 5 1-3/4 10 0.79
XCRN-09 6 2 10 0.79
XCRN-10 8 2-1/2 10 0.79
XCRN-11 4 1-1/2 11 0.71
XCRN-12 5 1-3/4 11 0.71
XCRN-13 6 2 11 0.71
XCRN-14 8 2-1/2 11 0.71
XCRN-15 4 1-1/2 12 0.71
XCRN-16 5 1-3/4 12 0.71
XCRN-17 6 2 12 0.71
XCRN-18 4 1-1/2 13 0.59
XCRN-19 5 1-3/4 13 0.59
XCRN-20 6 2 13 0.59
XCRN-21 5 1-3/4 14 0.55
Application

Application

  • Roofing felt.
  • Plastic foams.
  • Lightweight boards.
  • Wall insulation boards.
  • Cedar roofing shingles.
  • Pressboard.
  • Plastic board.
  • Plaster board.
  • Timber fence palings.
A man is installing the ridge cap shingle with clout nail.

Clout nails for ridge cap shingles

A man is installing the roofing felt with clout nails.

Clout nails for roofing felt

A man is trying to fix the clout nail to the asphalt substrate.

Clout nails for asphalt substrate

Fix the roof shingle with a clout nail..

Clout nails for roof shingle fixation

Gallery

Gallery

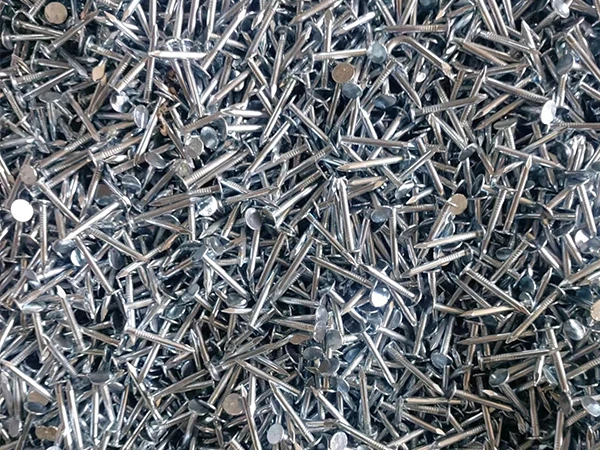

Many clout nails are placed together in a messy way

Clout nails

A worker's hand holding a few glossy clout nails

Glossy clout nails

Clout nails neatly arranged in a wooden box, each packed in plastic bags

Wooden Box Packaging
