Ring Shank Nails – Increased Grip Force & Staying Power

Ring shank nails, with screw-liked shank and diamond point, are designed for construction projects that need greater holding power. The ridges on the ring shank nails are designed to offer a 40% more lholding power than common nails. This type of nails can form a strong grip force when the nail are driven into the soft lumber. And they are difficult to remove without damaging the material. As a result, ring shank nails have proven to be the best solution for permanent construction projects, including binding plywood, building pole barns or installing siding.

Steel Nails Catalog

There are a lot of ring shank nails.

Feature

Feature
  • Annular ring shank threads for extra grip.
  • High resistant to withdrawal.
  • Sharp point for easier driving.
  • Ring patterns can vary according to customers' demands.
  • Great staying power and resistant to bending.
  • Complete gauges, length and sizes are available.

Specification

Specification
  • Material: carbon steel, stainless steel.
  • Material model: Q195, Q235, 304, 316, 316L.
  • Diameter: 4–20 gauge.
  • Length: 1/2" – 7".
  • Head type: flat head.
  • Shank type: ring shank.
  • Point: sharp point.
  • Surface treatment: bright, electro galvanized, vinyl coated, polished.
  • Standard: ASTM F1667, ASTM A153.
  • Package: 11 lbs per box, 2 lbs per box or bag, 1 lb per bag, 55 lbs per carton and as your request.
Nail background

Details

Details

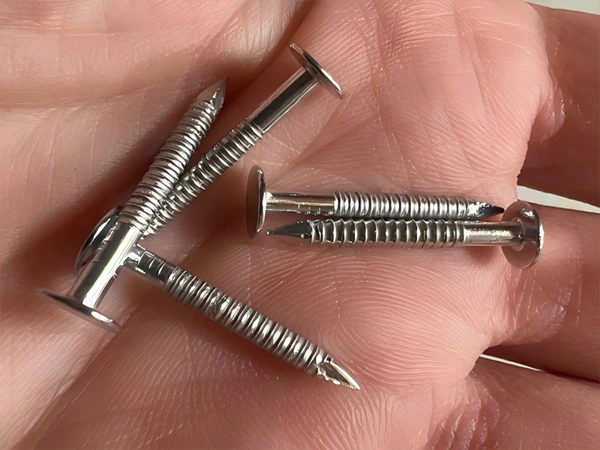

Several annular ring shank nails with flat head.

Flat head

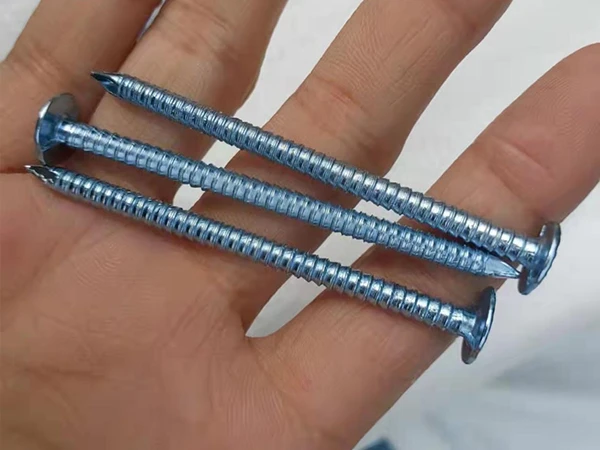

Eight annular ring shank nails with sharp point.

Annular ring shank & sharp point

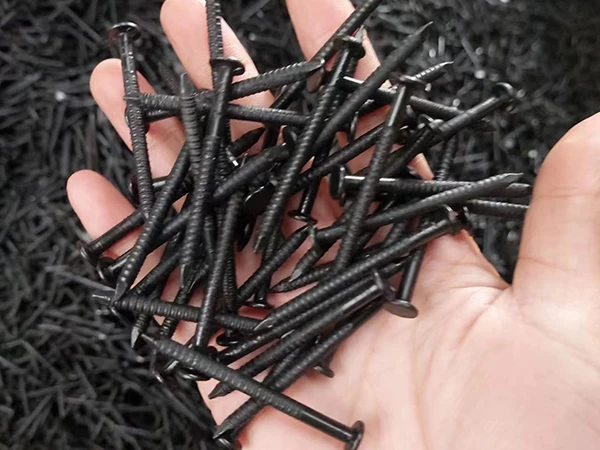

There are ten ring shank nails with different sizes.

Full range of sizes available

Stocked-Size

Stocked-Size
A diagram picture of ring shank nail.
Table 1: Specification of Ring Shank Nails
Table 1: Specification of Ring Shank Nails
For Post Frame
Item No. Length (inch) Dia. (inch) Head Dia. (inch) T1-Dia. TL P Root Dia.(inch)
Max. (inch) Min. (inch) Min. (inch) Max. (inch) Min. (inch)
XRS-01 3 0.135 5/16 0.010 0.005 2.25 0.077 0.050 0.128
XRS-02 3 0.148 5/16 0.010 0.005 2.25 0.077 0.050 0.140
XRS-03 3 0.177 3/8 0.010 0.005 2.25 0.077 0.050 0.169
XRS-04 3.5 0.135 5/16 0.010 0.005 2.25 0.077 0.050 0.128
XRS-05 3.5 0.148 5/16 0.010 0.005 2.25 0.077 0.050 0.140
XRS-06 3.5 0.177 3/8 0.010 0.005 2.25 0.077 0.050 0.169
XRS-07 3.5 0.200 15/32 0.010 0.005 2.25 0.077 0.050 0.193
XRS-08 4 0.148 5/16 0.010 0.005 2.25 0.077 0.050 0.140
XRS-09 4 0.177 3/8 0.010 0.005 2.25 0.077 0.050 0.169
XRS-10 4 0.200 15/32 0.010 0.005 2.25 0.077 0.050 0.193
XRS-11 4 0.207 15/32 0.010 0.005 2.25 0.077 0.050 0.199
XRS-12 4.5 0.148 5/16 0.010 0.005 3 0.077 0.050 0.140
XRS-13 4.5 0.177 3/8 0.010 0.005 3 0.077 0.050 0.169
XRS-14 4.5 0.200 15/32 0.010 0.005 3 0.077 0.050 0.193
XRS-15 4.5 0.207 15/32 0.010 0.005 3 0.077 0.050 0.199
XRS-16 5 0.177 3/8 0.010 0.005 3 0.077 0.050 0.169
XRS-17 5 0.200 15/32 0.010 0.005 3 0.077 0.050 0.193
XRS-18 5 0.207 15/32 0.010 0.005 3 0.077 0.050 0.199
XRS-19 6 0.177 3/8 0.010 0.005 3 0.077 0.050 0.169
XRS-20 6 0.200 15/32 0.010 0.005 3 0.077 0.050 0.193
XRS-21 6 0.207 15/32 0.010 0.005 3 0.077 0.050 0.199
XRS-22 8 0.177 3/8 0.010 0.005 3 0.077 0.050 0.169
XRS-23 8 0.200 15/32 0.010 0.005 3 0.077 0.050 0.193
XRS-24 8 0.207 15/32 0.010 0.005 3 0.077 0.050 0.199
* TL: length of threaded shank.
T1: crest diameter.
P: pitch, or spacing of threads.
Root Dia.: a calculated value and is not specified as a dimension to be measured.
For Roof Sheathing
Item No. Length (inch) Dia. (inch) Head Dia. (inch) T1-Dia. TL P Root Dia.(inch)
Max. (inch) Min. (inch) Min. (inch) Max. (inch) Min. (inch)
XRS-25 2-3/8 0.113 0.281 0.012 0.005 1-1/2 0.077 0.050 –
XRS-26 2-1/2 0.120 0.281 0.012 0.005 1-1/2 0.077 0.050 –
XRS-27 2-1/2 0.131 0.281 0.012 0.005 1-1/2 0.077 0.050 –
XRS-28 3 0.120 0.281 0.012 0.005 1-1/2 0.077 0.050 –
XRS-29 3 0.131 0.281 0.012 0.005 1-1/2 0.077 0.050 –
* TL: length of threaded shank.
T1: crest diameter.
P: pitch, or spacing of threads.
Root Dia.: a calculated value and is not specified as a dimension to be measured.
Application

Application

  • Plywood.
  • Decking.
  • Pallets.
  • Truss rafters.
  • Floors.
  • Underlayment.
  • Paneling.
  • Clapboards.
  • Shingles.
  • Drywall.
  • Siding.
  • Roofing.
  • Exterior trim.
Joint the wood slab and the drywall with ring shank nail.

Annular ring shank nail for drywall

Drive the ring shank nail to the roof panel.

Annular ring shank nail for uses on roofs

Drive the ring shank nail to the dense wood.

Annular ring shank nail for dense wood

There is a ragged hole left by removing the ring shank nail toughly.

Annular ring shank nail is hard to remove
